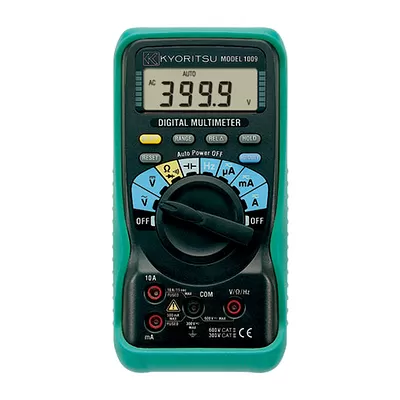

Kyoritsu MODEL 1009 Digital Multimeter
In stock
- In Stock – Kolkata Warehouse
- GST Invoice
- Pan India Delivery
- Manufacturer Warranty
Prices are indicative. We confirm stock and send a proforma invoice, including freight, before payment.
Overview
The Kyoritsu MODEL 1009 is a general-purpose digital multimeter with a 3999-count display and both automatic and manual ranging. It measures AC and DC voltage up to 600 V and AC and DC current directly from 400 µA up to 10 A, which makes it useful for checking loads, supplies and control circuits.
It also covers resistance to 40 MΩ, continuity, diode test, capacitance, frequency and duty cycle. Power comes from two AA (R6) cells, and the meter switches itself off after about 30 minutes to save battery. It is rated to IEC 61010-1 CAT III 300 V.
Key features
- 3999-count display with auto and manual ranging (range hold)
- Direct AC and DC current measurement up to 10 A
- Frequency, duty cycle, diode test and capacitance ranges
- Audible continuity test on the resistance range
- Automatic power-off after about 30 minutes
- IEC 61010-1 CAT III 300 V
Specifications
| DC Voltage | |
|---|---|
| Ranges and accuracy | 400 mV / 4 / 40 / 400 / 600 V (input impedance 10 MΩ); ±0.6% rdg ±4 dgt (400 mV–400 V), ±1.0% rdg ±4 dgt (600 V) |
| AC Voltage | |
| Ranges and accuracy | 400 mV / 4 / 40 / 400 / 600 V (input impedance 10 MΩ); ±1.6% rdg ±4 dgt (20–400 mV), ±1.3% rdg ±4 dgt (4/40 V), ±1.6% rdg ±4 dgt (400/600 V) |
| Current | |
| DC A | 400 / 4000 µA / 40 / 400 mA / 4 / 10 A; ±2.0% rdg ±4 dgt (400/4000 µA), ±1.0% rdg ±4 dgt (40/400 mA), ±1.6% rdg ±4 dgt (4/10 A) |
| AC A | 400 / 4000 µA / 40 / 400 mA / 4 / 10 A; ±2.6% rdg ±4 dgt (400/4000 µA), ±2.0% rdg ±4 dgt (40 mA–10 A) |
| Resistance & Continuity | |
| Resistance | 400 Ω / 4 / 40 / 400 kΩ / 4 / 40 MΩ; ±1.0% rdg ±4 dgt (400 Ω–4 MΩ), ±2.0% rdg ±4 dgt (40 MΩ) |
| Continuity buzzer | 0–400 Ω; buzzer below 100 Ω |
| Diode test | Open circuit voltage 1.5 V; test current approx. 0.4 mA |
| Other Functions | |
| Capacitance | 40 / 400 nF / 4 / 40 / 100 µF |
| Frequency | 5.12 / 51.2 / 512 Hz / 5.12 / 51.2 / 512 kHz / 5.12 / 10 MHz |
| Duty cycle | 0.1–99.9% (pulse width / pulse period), ±2.5% ±5 dgt |
| Display & Safety | |
| Display | 3999 counts |
| Measurement category | IEC 61010-1 CAT III 300 V |
| Standards | IEC 61010-2-031, IEC 61326 |
| General | |
| Power source | R6 (AA, 1.5 V) × 2; auto power off approx. 30 minutes |
| Dimensions | 161 (L) × 82 (W) × 50 (D) mm |
| Weight | Approx. 280 g |
Specifications are taken from the manufacturer's published documentation and may change. Please verify the exact specification in the manufacturer's datasheet before relying on it for a critical application.
Applications
Suitable for applications such as:
- Electrical MaintenanceDirect AC/DC current to 10 A plus voltage, resistance and continuity.
- Industrial TroubleshootingFrequency, duty cycle and diode functions for control-circuit checks.
Accessories included
| Part no. | Item | Qty |
|---|---|---|
| 7066A | Test leads | 1 |
| 8919 | Ceramic fuse 10 A/600 V | 1 |
| 8923 | Fuse 0.5 A/600 V | 1 |
| R6 | AA battery | 2 |
| – | Instruction manual | 1 |
Optional accessories (sold separately)
- 7234 – Crocodile clip test lead
- 9095 – Carrying case
Safety standards
- IEC 61010-1 CAT III 300 V
- IEC 61010-2-031
- IEC 61326
What's in the box
- Kyoritsu MODEL 1009 Digital Multimeter
- Test leads (7066A)
- Ceramic fuse 10 A/600 V (8919)
- Fuse 0.5 A/600 V (8923)
- 2 × AA battery (R6)
- Instruction manual
Supplied with: Certificate of Conformity.
Datasheet and manual
Manufacturer information
The MODEL 1009 is designed and manufactured by Kyoritsu Electrical Instruments Works, Ltd. (KEW), Japan. Industrial Supply Syndicate is an independent reseller; manufacturer warranty terms apply.
Buying guidance
The MODEL 1009 suits technicians who need direct current ranges up to 10 A and extra functions such as frequency and duty cycle at a modest price. It does not use True RMS sensing, so for AC measurements on distorted waveforms consider the KEW 1021R or KEW 1051.
