Kyoritsu · True RMS Digital Multimeter

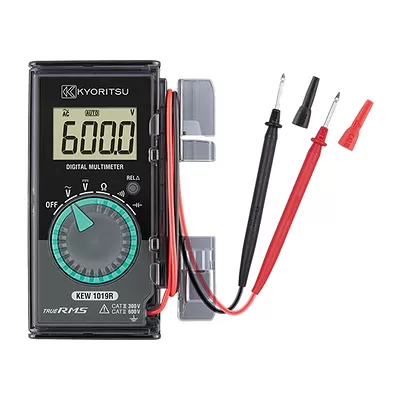

Kyoritsu KEW 1019R True RMS Digital Multimeter
In stock
- In Stock – Kolkata Warehouse
- GST Invoice
- Pan India Delivery
- Manufacturer Warranty
Prices are indicative. We confirm stock and send a proforma invoice, including freight, before payment.
Overview
The Kyoritsu KEW 1019R is a compact True RMS digital multimeter for everyday electrical work. It measures DC voltage from 600 mV to 600 V, AC voltage up to 600 V, resistance up to 40 MΩ and capacitance up to 600 µF, and includes a continuity buzzer.
True RMS sensing gives correct AC readings on distorted waveforms, which are common on circuits feeding electronic loads. The meter runs on a single CR2032 coin cell (about 120 hours of use) and ships in a fitted hard case. It is rated to IEC 61010-1 CAT III 300 V / CAT II 600 V. It has no current ranges, so pair it with a clamp meter when you also need to measure load current.
Key features
- True RMS measurement on AC voltage
- DC V, AC V, resistance, continuity and capacitance functions
- Large display in a slim body (126 × 85 × 18 mm)
- Supplied with a fitted hard case (MODEL 9188)
- Runs on one CR2032 coin cell, approx. 120 hours; auto power save after approx. 15 minutes
- IEC 61010-1 CAT III 300 V / CAT II 600 V
Specifications
| DC Voltage | |
|---|---|
| Ranges and accuracy | 600.0 mV / 6.000 / 60.00 / 600.0 V (input impedance approx. 10 MΩ); ±0.8% rdg ±5 dgt (600.0 mV–60.00 V), ±1.0% rdg ±5 dgt (600.0 V) |
| AC Voltage | |
| Ranges and accuracy | 6.000 / 60.00 / 600.0 V (input impedance approx. 10 MΩ); ±1.3% rdg ±5 dgt (6/60 V, 50/60 Hz), ±1.7% rdg ±5 dgt (6/60 V, 45–500 Hz), ±1.6% rdg ±5 dgt (600 V, 50/60 Hz), ±2.0% rdg ±5 dgt (600 V, 45–500 Hz) |
| Detection | True RMS; crest factor ≤ 3 (50/60 Hz); for non-sinusoidal waveforms add ±0.5% rdg ±5 dgt; 900 V peak |
| Resistance & Continuity | |
| Resistance | 600.0 Ω / 6.000 / 60.00 / 600.0 kΩ / 6.000 / 40.00 MΩ; ±1.0% rdg ±5 dgt (600 Ω–6 MΩ), ±2.5% rdg ±5 dgt (40 MΩ) |
| Continuity buzzer | 600.0 Ω range; buzzer at 60 Ω or less |
| Capacitance | |
| Ranges and accuracy | 6.000 / 60.00 / 600.0 nF / 6.000 / 60.00 / 600.0 µF; ±3.5% rdg ±50 dgt (6 nF), ±3.5% rdg ±10 dgt (60 nF), ±3.5% rdg ±5 dgt (600 nF–60 µF), ±4.5% rdg ±5 dgt (600 µF) |
| Safety | |
| Measurement category | IEC 61010-1 CAT III 300 V / CAT II 600 V, pollution degree 2 |
| Standards | IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 |
| General | |
| Power source | CR2032 (3 V) × 1, approx. 120 hours; auto power save approx. 15 minutes |
| Dimensions | 126 (L) × 85 (W) × 18 (D) mm |
| Weight | Approx. 135 g (including hard case and battery) |
Specifications are taken from the manufacturer's published documentation and may change. Please verify the exact specification in the manufacturer's datasheet before relying on it for a critical application.
Applications
Suitable for applications such as:
- Electrical MaintenanceMeasures AC/DC voltage, resistance, continuity and capacitance; CAT III 300 V rated.
- Field Electrical TestingSlim 135 g meter supplied in a hard case.
Accessories included
| Part no. | Item | Qty |
|---|---|---|
| 9188 | Hard case | 1 |
| CR2032 | Battery | 1 |
| – | Instruction manual | 1 |
Optional accessories (sold separately)
- 9188 – Hard case
Safety standards
- IEC 61010-1 CAT III 300 V
- IEC 61010-1 CAT II 600 V
- IEC 61010-2-033
- IEC 61010-031
- IEC 61326-2-2 (EMC)
What's in the box
- Kyoritsu KEW 1019R True RMS Digital Multimeter
- Hard case (9188)
- Battery (CR2032)
- Instruction manual
Supplied with: Certificate of Conformity.
Datasheet and manual
Manufacturer information
The KEW 1019R is designed and manufactured by Kyoritsu Electrical Instruments Works, Ltd. (KEW), Japan. Industrial Supply Syndicate is an independent reseller; manufacturer warranty terms apply.
Buying guidance
Choose the KEW 1019R if you need a small, pocketable meter for voltage, resistance, continuity and capacitance checks. If you also need current measurement, look at the KEW 1021R (10 A ranges and clamp-sensor input) or MODEL 1009.
Frequently asked questions
What is the Kyoritsu KEW 1019R used for?
Slim True RMS digital multimeter for AC/DC voltage, resistance, continuity and capacitance, supplied in a protective hard case.
What safety category is the Kyoritsu KEW 1019R rated for?
It is rated IEC 61010-1 CAT III 300 V / CAT II 600 V, pollution degree 2, according to the manufacturer's specification.
What accessories are included with the Kyoritsu KEW 1019R?
The standard package includes: Hard case (9188); Battery (CR2032); Instruction manual.
