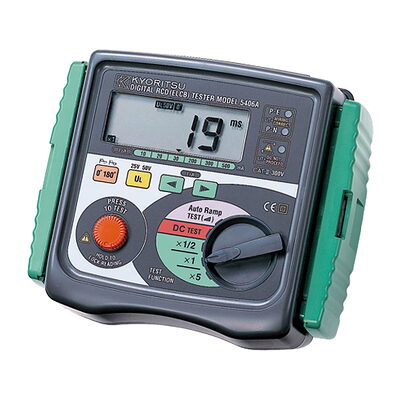

Kyoritsu · MODEL 5406A
Kyoritsu MODEL 5406A Digital RCD Tester
Digital RCD tester for 10–500 mA devices: ×½, ×1, ×5, DC and auto-ramp tests, trip time in ms, wiring check…
List price ₹48,817 30% OFF
₹34,172 + GST
You save ₹14,645
RCD Testing
Checking that RCCBs and ELCBs trip at the right current and time.
The problem
An RCD that does not trip, or trips too slowly, leaves people unprotected against shock. One that trips too easily causes nuisance outages.
Measurement required
Trip time at ½×, 1× and 5× rated residual current, ramp tests for actual trip current, and leakage current on the protected circuits.
Instrument type
A digital RCD tester for trip time, and a leakage clamp meter to find the source of standing leakage.
Relevant Kyoritsu instruments
Listed because their documented specifications cover this measurement. Check the full specifications for your exact requirement.
Trip-time tests on 10–500 mA RCDs, types AC and A (IEC 61557-6).

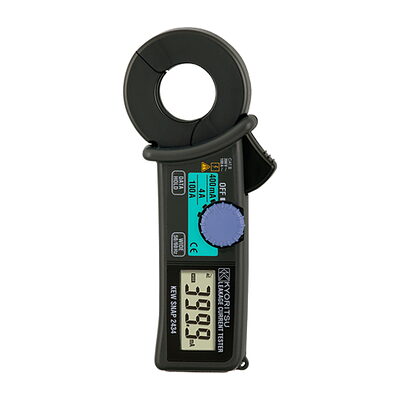

Kyoritsu · MODEL 2434
Kyoritsu MODEL 2434 Leakage Clamp Meter
AC leakage clamp meter with 0.1 mA resolution, 28 mm jaw, low sensitivity to stray magnetic fields and a…
List price ₹38,742 30% OFF
₹27,119 + GST
You save ₹11,623
Locates leakage currents behind nuisance RCD trips (0.1 mA resolution).
How to choose
Check that the tester covers the RCD ratings and types (AC, A, selective) you use and suits your supply voltage.
Safety considerations
RCD tests are live tests. Warn users of the circuit, and make sure earth continuity has been verified first.
