Kyoritsu · KEW 1021R

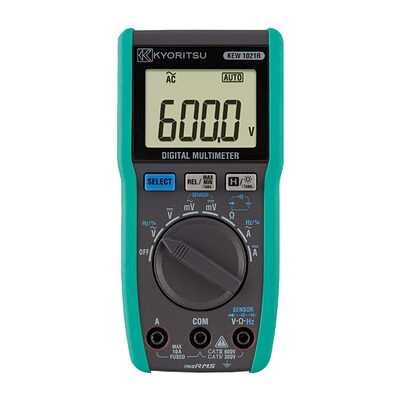

Kyoritsu KEW 1021R True RMS Digital Multimeter
True RMS 6000-count multimeter rated CAT IV 300 V, with 10 A current ranges and an input for Kyoritsu clamp…
List price ₹12,620 30% OFF
₹8,834 + GST
You save ₹3,786
Electrical Panel Testing
Checking distribution boards, MCC panels and control panels.
The problem
Panels concentrate connections, protective devices and control wiring. Faults range from overloaded outgoing ways to loose terminals and wrong phase connections.
Measurement required
Voltage at incomers and outgoings, load current per circuit, phase sequence, and currents in tightly packed control wiring.
Instrument type
A CAT III/CAT IV multimeter, a clamp meter, a fork current tester for small conductors and a phase indicator.
Relevant Kyoritsu instruments
Listed because their documented specifications cover this measurement. Check the full specifications for your exact requirement.
Rated IEC 61010-1 CAT IV 300 V / CAT III 600 V.
Kyoritsu · KEW 2117R

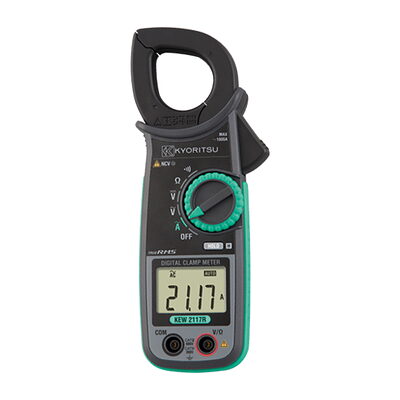

Kyoritsu KEW 2117R True RMS AC Clamp Meter
True RMS AC clamp meter to 1000 A with 0.01 A resolution, 33 mm jaw and CAT IV 300 V / CAT III 600 V rating.
List price ₹14,968 30% OFF
₹10,478 + GST
You save ₹4,490
Rated IEC 61010-1 CAT IV 300 V / CAT III 600 V; 33 mm jaw.
Kyoritsu · KEW 2062
Kyoritsu KEW 2062 Clamp Power Meter
Clamp power meter for 1P2W to 3P4W systems: 1000 V, 1000 A, kW/kVA/kvar, power factor, harmonics to the 30th…
List price ₹95,620 30% OFF
₹66,934 + GST
You save ₹28,686
Clamp-on power measurement at panels; jaw takes an 80 × 30 mm busbar.
Kyoritsu · KEW 2300R

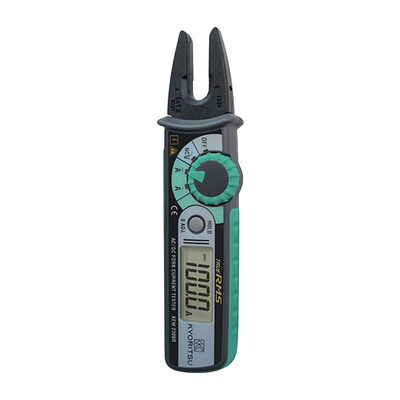

Kyoritsu KEW 2300R AC/DC Fork Current Tester
True RMS fork-type tester for AC and DC current up to 100 A on conductors up to 10 mm, with non-contact…
List price ₹18,197 30% OFF
₹12,738 + GST
You save ₹5,459
Fork sensor for conductors up to 10 mm; non-contact voltage indication.
Kyoritsu · KEW 2055

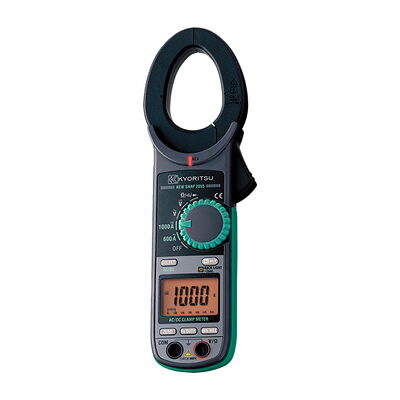

Kyoritsu KEW 2055 AC/DC Clamp Meter
CAT IV 600 V AC/DC clamp meter to 1000 A with a 40 mm jaw, non-contact voltage indicator and 6039-count…
List price ₹26,415 30% OFF
₹18,491 + GST
You save ₹7,924
Rated IEC 61010-1 CAT IV 600 V.
How to choose
Choose slim jaws or a fork sensor for crowded panels and at least CAT III ratings for board work.
Safety considerations
Keep panel covers and shrouds in place where possible, use insulated probes with minimal exposed tips, and follow safe isolation procedures.
