Kyoritsu · Digital RCD Tester

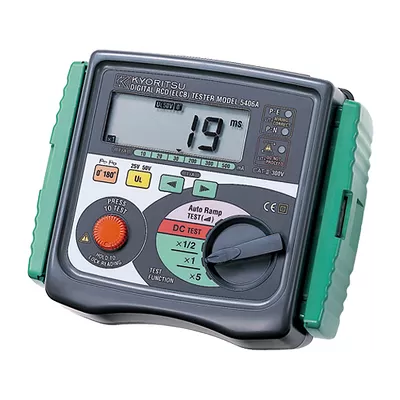

Kyoritsu MODEL 5406A Digital RCD Tester
In stock
- In Stock – Kolkata Warehouse
- GST Invoice
- Pan India Delivery
- Manufacturer Warranty
Prices are indicative. We confirm stock and send a proforma invoice, including freight, before payment.
Overview
The Kyoritsu MODEL 5406A tests residual current devices (RCDs/RCCBs/ELCBs) rated at 10, 20, 30, 200, 300 and 500 mA. It applies ×½, ×1 and ×5 test currents, a DC test and an auto-ramp, and shows the tripping time digitally with 1 ms resolution.
It handles standard, selective, type AC and type A (DC-sensitive) devices. A 0° / 180° phase-angle switch allows repeatable readings, and a constant-current source keeps mains fluctuations from affecting accuracy. Three LEDs check socket wiring and show reversed phase and neutral. It works on 230 V 50 Hz supplies, has an IP54 case and conforms to IEC 61557-6. Each unit in this listing comes with a KEW test certificate.
Key features
- Rated tripping currents 10 / 20 / 30 / 200 / 300 / 500 mA
- Test modes ×½, ×1, ×5, ×DC and auto ramp
- Digital trip-time readout, 1 ms resolution
- Tests standard, selective, type AC and type A (DC-sensitive) RCDs
- 0° / 180° phase-angle switch
- Three LEDs for wiring check; indicates reversed phase and neutral
- Constant current source for stable readings on fluctuating mains
- IP54; IEC 61557-6; IEC 61010-1 CAT III 300 V
Specifications
| RCD Test | |
|---|---|
| Rated tripping current | 10 / 20 / 30 / 200 / 300 / 500 mA |
| Fault settings | ×½, ×1, ×5, ×DC, auto ramp |
| Trip current duration | 1000 ms; 200 ms (×5) |
| RCD types | Standard, selective, AC and A (DC sensitive) |
| Resolution and accuracy | 1 ms; ±0.6% rdg ±4 dgt |
| Supply | |
| Operating voltage | 230 V +10% / −15% (195–253 V), 50 Hz |
| Safety | |
| Measurement category | IEC 61010-1 CAT III 300 V, pollution degree 2 |
| Standards | IEC 61557-1, 6; IEC 61010-2-031 |
| Ingress protection | IEC 60529 IP54 |
| General | |
| Dimensions | 167 (L) × 186 (W) × 89 (D) mm |
| Weight | Approx. 800 g |
Specifications are taken from the manufacturer's published documentation and may change. Please verify the exact specification in the manufacturer's datasheet before relying on it for a critical application.
Applications
Suitable for applications such as:
- RCD TestingTrip-time tests on 10–500 mA RCDs, types AC and A (IEC 61557-6).
- Electrical Safety TestingRCD verification and socket wiring check.
Accessories included
| Part no. | Item | Qty |
|---|---|---|
| – | Moulded plug test lead (plug type varies by region) | 1 |
| 9121 | Shoulder strap | 1 |
| 9147 | Cord case | 1 |
| – | Instruction manual | 1 |
Optional accessories (sold separately)
- 7121B – Distribution board test leads
Safety standards
- IEC 61010-1 CAT III 300 V
- IEC 61010-2-031
- IEC 61557-1, 6
- IEC 60529 IP54
What's in the box
- Kyoritsu MODEL 5406A Digital RCD Tester
- Moulded plug test lead (plug type varies by region)
- Shoulder strap (9121)
- Cord case (9147)
- Instruction manual
Supplied with: Test Certificate from KEW (A4 Size).
Datasheet and manual
Manufacturer information
The MODEL 5406A is designed and manufactured by Kyoritsu Electrical Instruments Works, Ltd. (KEW), Japan. Industrial Supply Syndicate is an independent reseller; manufacturer warranty terms apply.
Buying guidance
Choose the MODEL 5406A for periodic RCD testing in buildings, panels and installations on 230 V supplies. The test lead supplied varies by plug type; confirm the plug version with us when ordering.
Frequently asked questions
What is the Kyoritsu MODEL 5406A used for?
Digital RCD tester for 10–500 mA devices: ×½, ×1, ×5, DC and auto-ramp tests, trip time in ms, wiring check LEDs and IP54 case.
What safety category is the Kyoritsu MODEL 5406A rated for?
It is rated IEC 61010-1 CAT III 300 V, pollution degree 2, according to the manufacturer's specification.
What accessories are included with the Kyoritsu MODEL 5406A?
The standard package includes: Moulded plug test lead (plug type varies by region); Shoulder strap (9121); Cord case (9147); Instruction manual.
