Kyoritsu · AC Clamp Meter

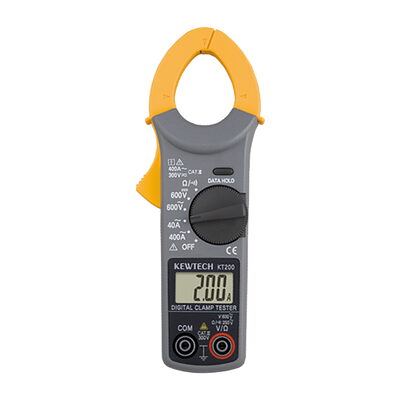

Kyoritsu KT 200 AC Clamp Meter
Available on order
Price on Request
Send a Get Best Price request and we will reply with a quotation.
- GST Invoice
- Pan India Delivery
- Manufacturer Warranty
Prices are indicative. We confirm stock and send a proforma invoice, including freight, before payment.
Overview
The Kyoritsu KT 200 is a small, handy AC clamp meter for routine current checks up to 400 A. Its 30 mm jaw fits most branch-circuit and small feeder conductors.
It also measures AC and DC voltage to 600 V, resistance to 4000 Ω and continuity. Two AAA cells give about 200 hours of continuous use, with auto power save after about 10 minutes. It is rated IEC 61010-1 CAT III 300 V (current) / CAT II 600 V.
Key features
- AC current 40 / 400 A
- 30 mm jaw
- AC and DC voltage to 600 V, resistance and continuity buzzer
- Approx. 200 hours continuous use on two AAA cells
- IEC 61010-1 CAT III 300 V (ACA) / CAT II 600 V
Specifications
| AC Current | |
|---|---|
| AC A | 40.00 / 400.0 A ±2.0% rdg ±6 dgt (50/60 Hz) |
| Voltage | |
| AC V | 400.0 / 600 V (auto-ranging) ±2.0% rdg ±5 dgt (50/60 Hz) |
| DC V | 400.0 / 600 V (auto-ranging) ±1.5% rdg ±5 dgt |
| Resistance & Continuity | |
| Resistance | 400.0 / 4000 Ω (auto-ranging) ±2.0% rdg ±5 dgt |
| Continuity buzzer | Buzzer below 50 ±35 Ω |
| Jaw & Safety | |
| Conductor size | φ30 mm max. |
| Measurement category | IEC 61010-1 CAT III 300 V (ACA) / CAT II 600 V, pollution degree 2 |
| Standards | IEC 61010-2-032, IEC 61326-1 |
| General | |
| Power source | R03 (AAA, 1.5 V) × 2; approx. 200 hours continuous; auto power save approx. 10 minutes |
| Dimensions | 184 (L) × 68.5 (W) × 38.5 (D) mm |
| Weight | Approx. 190 g (including batteries) |
Specifications are taken from the manufacturer's published documentation and may change. Please verify the exact specification in the manufacturer's datasheet before relying on it for a critical application.
Applications
Suitable for applications such as:
- Electrical MaintenanceAC current to 400 A plus voltage, resistance and continuity.
Accessories included
| Part no. | Item | Qty |
|---|---|---|
| 7066A | Test leads | 1 |
| R03 | AAA battery | 2 |
| – | Instruction manual | 1 |
Optional accessories (sold separately)
- 9105 – Carrying case
Safety standards
- IEC 61010-1 CAT III 300 V (ACA)
- IEC 61010-1 CAT II 600 V
- IEC 61010-2-032
- IEC 61326-1
What's in the box
- Kyoritsu KT 200 AC Clamp Meter
- Test leads (7066A)
- 2 × AAA battery (R03)
- Instruction manual
Supplied with: Certificate of Conformity.
Datasheet and manual
Manufacturer information
The KT 200 is designed and manufactured by Kyoritsu Electrical Instruments Works, Ltd. (KEW), Japan. Industrial Supply Syndicate is an independent reseller; manufacturer warranty terms apply.
Buying guidance
Choose the KT 200 for light-duty AC current checks at a budget price. For True RMS readings, higher current or a CAT IV rating, move up to the KEW 2117R.
Frequently asked questions
What is the Kyoritsu KT 200 used for?
Small, handy 400 A AC clamp meter with AC/DC voltage, resistance and continuity functions.
What safety category is the Kyoritsu KT 200 rated for?
It is rated IEC 61010-1 CAT III 300 V (ACA) / CAT II 600 V, pollution degree 2, according to the manufacturer's specification.
What accessories are included with the Kyoritsu KT 200?
The standard package includes: Test leads (7066A); 2 × AAA battery (R03); Instruction manual.
What is the price of the Kyoritsu KT 200?
The price for this model is available on request. Use Get Best Price or WhatsApp and we will send you a quotation.
How do I order or get a quotation?
Use Place Order Request or Get Best Price on this page, or message us on WhatsApp. We verify stock and send a proforma invoice, including freight, before payment.
Do you ship across India?
We deliver across India. Freight is calculated for your delivery location and added to the proforma invoice after we discuss the order with you.
