Kyoritsu · Phase Indicator

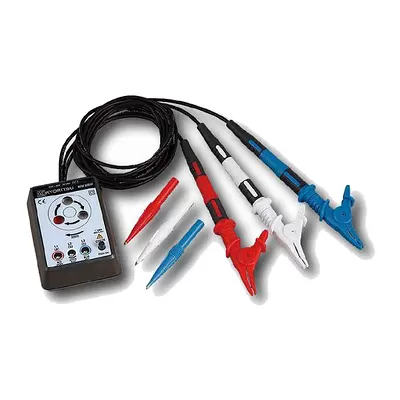

Kyoritsu KEW 8031 Phase Indicator
In stock
- In Stock – Kolkata Warehouse
- GST Invoice
- Pan India Delivery
- Manufacturer Warranty
Prices are indicative. We confirm stock and send a proforma invoice, including freight, before payment.
Overview
The Kyoritsu KEW 8031 checks the phase sequence of three-phase supplies from 110 to 600 V AC (50/60 Hz) and shows whether any phase is open, in one small, sealed unit. It is typically used before connecting motors, pumps or generators so they turn the right way.
The CE-type version listed here is rated IEC 61010-1 CAT IV 300 V / CAT III 600 V. It comes with 1.5 m colour-coded leads (red, white, blue) and a carrying case. Continuous use above 500 V is limited to 5 minutes.
Key features
- Checks phase sequence and open phase in one unit
- Operating range 110–600 V AC, 50/60 Hz
- Sealed against dust
- Small, lightweight and portable (approx. 350 g)
- 1.5 m colour-coded leads: L1 red, L2 white, L3 blue
- CE type: IEC 61010-1 CAT IV 300 V / CAT III 600 V
Specifications
| Phase Test | |
|---|---|
| Operating voltage | 110–600 V AC (50/60 Hz) |
| Continuous use limit | Above 500 V: within 5 minutes |
| Leads | 1.5 m; L1 (U) red / L2 (V) white / L3 (W) blue |
| Safety | |
| Measurement category | IEC 61010-1 CAT IV 300 V, CAT III 600 V, pollution degree 2 (CE type) |
| General | |
| Dimensions | 106 (L) × 75 (W) × 40 (D) mm |
| Weight | Approx. 350 g (main unit only) |
Specifications are taken from the manufacturer's published documentation and may change. Please verify the exact specification in the manufacturer's datasheet before relying on it for a critical application.
Applications
Suitable for applications such as:
- Phase Sequence TestingPhase sequence and open-phase check on 110–600 V three-phase supplies.
- Motor TestingPhase sequence check before connecting three-phase motors.
Accessories included
| Part no. | Item | Qty |
|---|---|---|
| 9095 | Carrying case | 1 |
| – | Instruction manual | 1 |
Optional accessories (sold separately)
- 9095 – Carrying case
Safety standards
- IEC 61010-1 CAT IV 300 V
- IEC 61010-1 CAT III 600 V
What's in the box
- Kyoritsu KEW 8031 Phase Indicator
- Carrying case (9095)
- Instruction manual
Supplied with: Certificate of Conformity.
Datasheet and manual
Manufacturer information
The KEW 8031 is designed and manufactured by Kyoritsu Electrical Instruments Works, Ltd. (KEW), Japan. Industrial Supply Syndicate is an independent reseller; manufacturer warranty terms apply.
Buying guidance
The KEW 8031 is a simple, robust tool for electricians who connect three-phase motors, pumps and generators. It checks sequence and open phase only; use a multimeter or clamp meter to measure voltage and current.
Frequently asked questions
What is the Kyoritsu KEW 8031 used for?
Rugged phase indicator for 110–600 V three-phase supplies: checks phase sequence and open phase in one unit (CE type, CAT IV 300 V).
What safety category is the Kyoritsu KEW 8031 rated for?
It is rated IEC 61010-1 CAT IV 300 V, CAT III 600 V, pollution degree 2 (CE type), according to the manufacturer's specification.
What accessories are included with the Kyoritsu KEW 8031?
The standard package includes: Carrying case (9095); Instruction manual.
